| LED touch screen monitor |

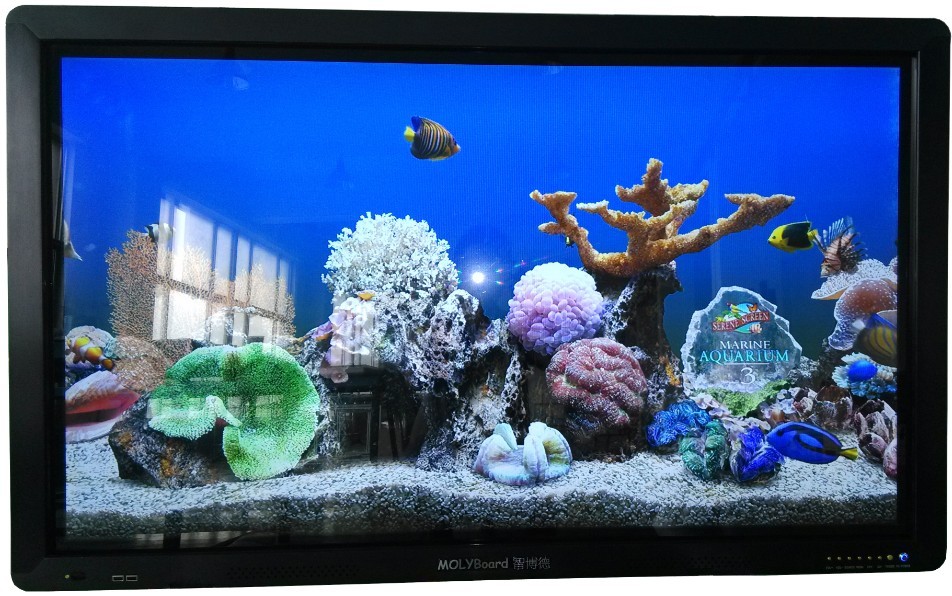

MOLYTouch A series product is an all-in-one machine which integrated with PC, infrared touch panel and TV. It's designed for public viewing of advertisements, maps and other consumer information, as well as interactive digital signage. The TV series features quiet, fanless operation and built in speakers and can be mounted in portrait mode. This model features a full selection of inputs, which allows you to connect to a wide range of peripheral devices. The high-performance touch panel based on IR technologies promote extended use, along with an adaptable cabinet design, make MOLYTouch A series ideal for retail and restaurant markets, as well as indoor venues, training facilities and corporate boardrooms.
|
Parameters
|
Modelo
|
MBTV5520
|
mbTV6520
|
MBTV7020
|
|
Screen
|
LED
|
LED
|
LED
|
|
Active area(mm)
|
1210(h)×680(v)
|
1441(h)×815(v)
|
1544(h)×877(v)
|
|
Resolução
|
1920x1080
|
1920x1080
|
1920x1080
|
|
Relação de aspecto
|
16:9
|
16:9
|
16:9
|
|
Dot Pitch
|
0.21(H)×0.63(V)
|
0.744(H)×0.744(V)
|
0.802(H)×0.802(V)
|
|
Brightness
|
500cd/㎡
|
500cd/㎡
|
500cd/㎡
|
|
Contrast ratio
|
6000:1
|
6000:1
|
6000:1
|
|
Viewing angle
|
±178°
|
±178°
|
±178°
|
|
Response time
|
≤4ms
|
≤4ms
|
≤4ms
|
|
Input interface
|
TV
|
PAL, SECAM、NTSC
|
|
USB interface
|
×2
|
|
avi、mp4、ts、trp、mkv、mov、mpg、rm、rmvb、dat、vob、mp3、wma、aac、m4a、jpg、jpeg、bmp、png (MPEG-2, MPEG-4, H.264)
|
|
CVBS
|
1
|
|
High Definition
|
3
|
|
opcional
|
RS232：1
|
|
other
|
PC-AUDIO ：1； YPBPR ：1；VGA ：1
|
|
Output interface
|
AVOUT ：1； COAX ：1； EARPHONE ：1
|
|
Optional functions
|
|
PC box
|
CPU
|
CPUG645, IntelH61
|
|
Memory Chips
|
2G
|
|
Hard disk
|
500G
|
|
Interface
|
HDMI×1, VGA×1, USB×6, VI×1,RJ×1, PCAUDIO×1, MIC×1
|
|
Tamanho
|
240mm×205mm×40mm
|
|
Functions
|
|
Sistema Operacional
|
Support Windows 7/ Windows XP/ Windows 2000 / Linux UNIX
|
|
Video Characteristics
|
(3D digital comb filter、3D image noise reduction、3D self-adaption comb filter etc.)
|
|
Touch and Writing system
|
Integrated mode：seamless built-in，flushbonading；Touch technology：Optical infrared multi-touch technology；way of writing：finger、pen or any other nontransparent objects；induction area:＞5mm
|
|
response time：5ms；positional accuracy：±1.5mm；resolution：32768×32768；communication：USB cable)；computer responding: automatic recognition
|
|
RJ45 Touch port：1（connect to computer to achieve touch function, LAN cables can be extended 15m at least）
|
|
Other features
|
support auto power-off, one-key switch on/off, sleep timer,support HDCP; (opcional)remote control to switch on/off the computer
|
|
(opcional) support backlight can be adjustable； Outdoor waterproof criterion：IP65/68；toughened glass：GB/T 4mm (thickness)
|
|
Menu Display
|
Menu Language: Chinese/English（Multi language）
|
|
Outline size(mm)
|
1340×814×91
|
1594×964×104
|
1643×973×104
|
|
Package size(mm)
|
1492×963×310
|
1744×1114×310
|
1793×1123×310
|
|
Gross weight
|
62KG
|
83KG
|
92KG
|
|
Net weight
|
47KG
|
68KG
|
77KG
|
|
Lifetime
|
＞50000 hours
|
＞50000 hours
|
＞60000 hours
|
|
Image resolution
|
480P/720P/1080P
|
480P/720P/1080P
|
480P/720P/1080P
|
|
Acessórios
|
instruction，warranty card，Certificate of Approval，remote control, battery，power cable，HDMI cable (or VGA cable，Audio cable), whiteboard CD, Driver CD, Touch pen.
|
|
Potência
|
|
Mains input
|
AC100~240V 50 /60 HZ
|
|
Audio Power
|
2×15W
|
2×15W
|
2×15W
|
|
Max power consumption
|
<150W
|
<200W
|
<250W
|
|
Power Standby
|
<1W
|
<1W
|
<1W
|
|
Appearance
|
color：black/customizable；package：carton；installation：floor stand/wall-mounted；
|
|
Temperatura
|
Working Temperatura:-10℃～40℃； Storage Temperatura:-20℃～50℃； Working Humidity:10%～80%； Storage Humidity:5%～95%
|
|
|
|
|
|
